Wave Solder Machines
Click on images to enlarge.
|
|
|

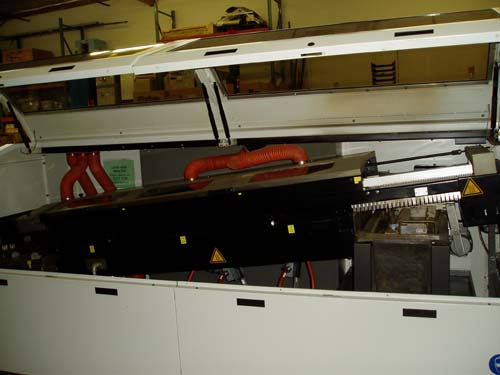

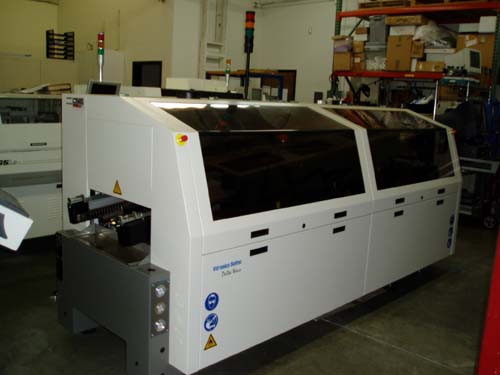

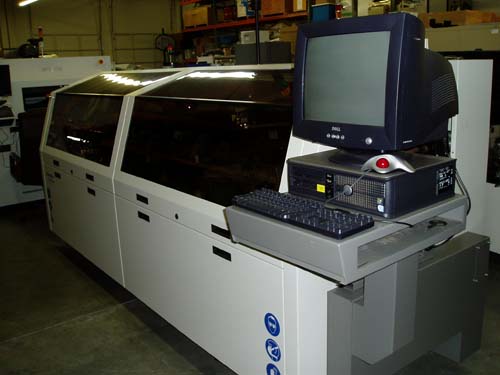

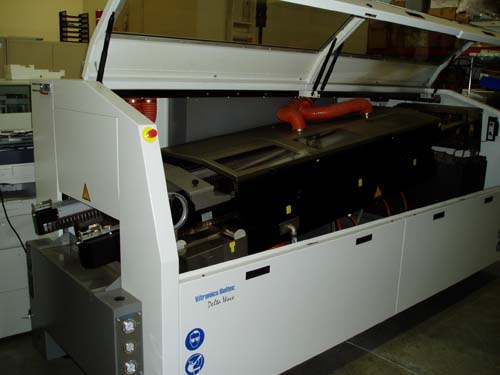

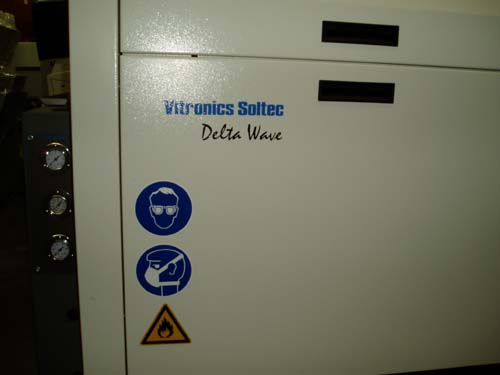

2006 Vitronics Soltec Delta Wave
|
|
|
- model # 6622cc
- serial # 0608835601
- power- 48.5 kva
- voltage – 3 x 400v
- cycles – 60hz
- machine weight – 2300kg
- air pressure – 6 bar
- air consumption – 30 m 3/h
- Largest load – 80a
- Length – 12 ft
- Width – 63 inches
- Height – 5 ft
|
|

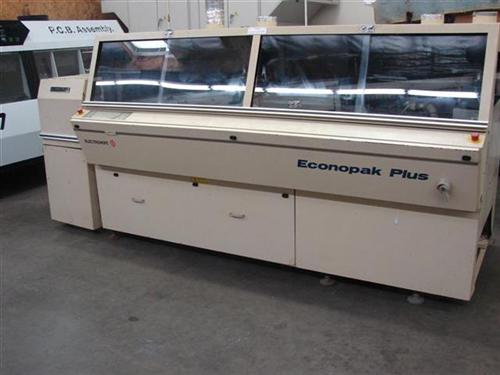

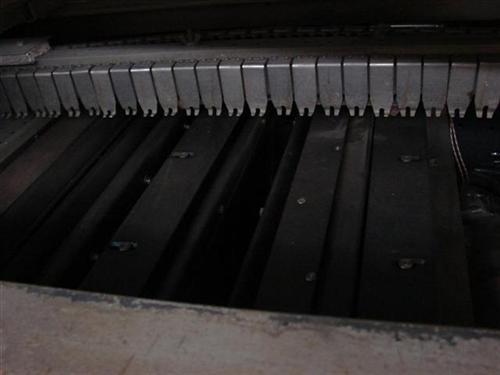

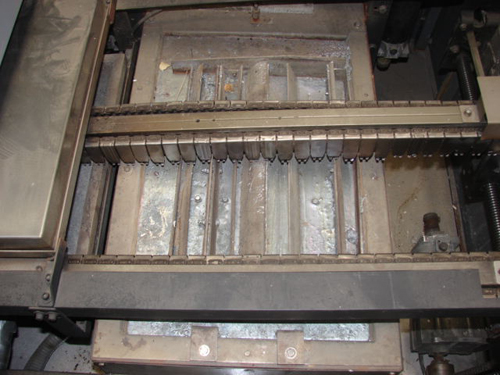

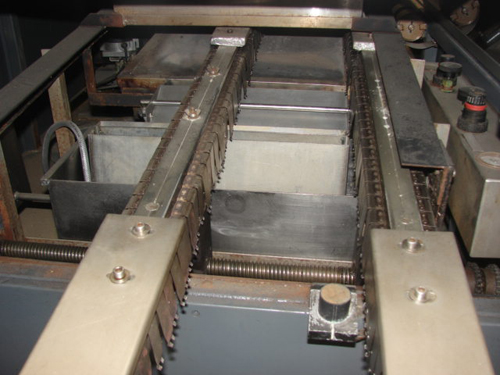

2001 Electrovert Econopak Plus 18" Dual Wave Solder Machine.
|
|
|
- S/N: RK-1110074-01
- Lead Free and Nitrogen Ready
- 18” Dual Wave
- Finger-Finger-Pallet Conveyor
- External spray fluxer
- 3 Bottom convection pre-heaters
- 3 top deflector plates
- Finger cleaner
- Motorized solder pot (in-out, up-down)
- Dimensions: 12' 7" Length rail to rail, 5' wide, 7' wide with solder pot roll out
- Power: 380 volts, 3 phase, 75 amps
|
|

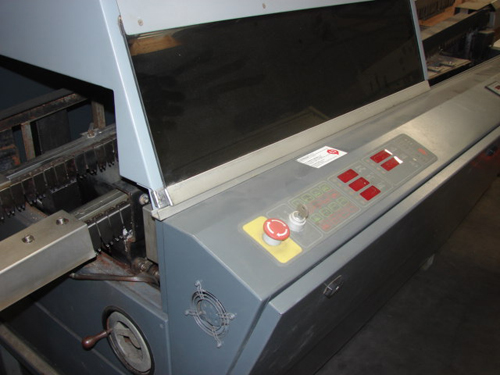

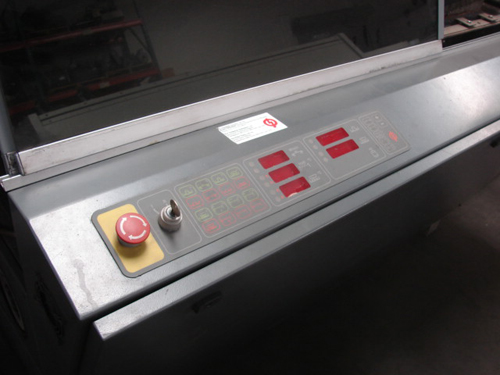

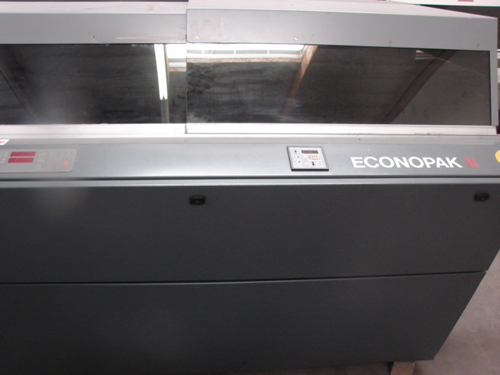

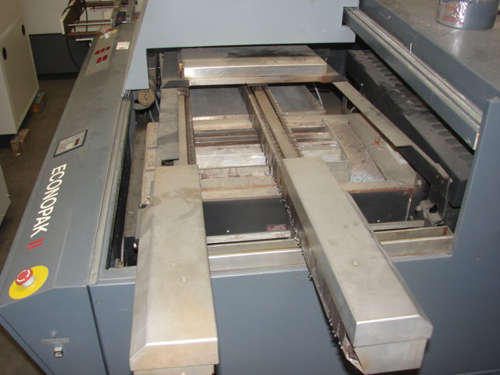

Econopak II Wave solder machine
|
|
|
- 16" Dual Wave
- Foam Fluxer
- Top and bottom IR Pre-heat
- S/N: MO860114217/C048
- Power: 240 volts, 60 amps
- Dimensions: 8'5" Long x 4'10" wide
|
|
1996 Technical Devices Lead Free Nu/Era JR Wave Solder machine
|
|
|
- Pot filled with lead free SN/100C
- 16" Usable Dual Wave
- Foam Fluxer
- 30" top and bottom radiant pre-heat
- Pallet conveyor
- Machine comes with 3 pallets
- Serial No.: 7096-485
- Power: 230 volt, 3 phase, 35 amps
- Dimensions: 8' rail to rail x 4'6" wide
|
|
NovaStar Tabletop Wave
|
|
|
- Serial # - NTI-S12D0211733
- Length – 68”
- Width – 39”
- Height – 24”
|
|
